| ID | Produktkod | Namn |
|---|---|---|
| 1 | F8-09000600W | Flywheel |
| 2 | GB/T5783-M6x30 | Hexagon bolt M6x30 |
| 3 | GB/T97.1-6 | Plain Flat Washer 6Kompatibel med Yamaha 92995-06600 |
| 4 | F8-05090000W | COIL |
| 5 | GB/T5783-M6x25 | Hexagon bolt M6x25 |

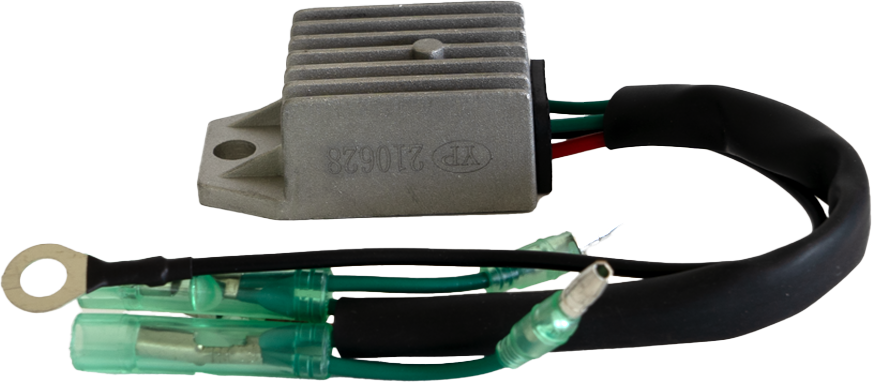

| 6 | F15-07060001 | RECTIFIER & REGULATOR ASSEMBLYKompatibel med Yamaha 6J8-81960-00 |
| 7 | GB/T6170-M6 | Hexagon nut M6Kompatibel med Yamaha 95303-06600 |
| 8 | GB/T97.1-6 | Plain Flat Washer 6Kompatibel med Yamaha 92995-06600 |
| 9 | F25-05170202W | Power source line cover BKompatibel med Yamaha 682-82119-01 |
| 10 | F25-05170401W | Connection line jacket |
| 11 | F8-05090200W | Start stator cable |
| 12 | F15-07150200W | Power source lineKompatibel med Yamaha 689-82105-13 |
| 13 | F15-07150300W | Motor relayKompatibel med Yamaha 6G1-81941-10 |
| 14 | F15-07150301W | JACKET,RELAY |
| 15 | GB/T93-6 | Standard split spring lock washer 6 |
| 16 | GB/T5783-M6x16 | Hexagon bolt M6x16 |
| 17 | F25-07150302W | PLANK,RELAY |
| 18 | F8-05000027W | FUSE |
| 19 | F25-05090100W | FUSE ASSEMBLY |
| 20 | F25-05170201W | Power source line cover A |
| 21 | GB/T818-M5X12 | Cross-recess pan head screw M5x12Kompatibel med Yamaha 97885-05012 |
| 22 | GB/T93-5 | Standard split spring lock washer 5 |
| 23 | GB/T97.1-5 | Plain Flat Washer 5Kompatibel med Yamaha 6Y1-24329-00 |
| 24 | F8-09000400W | Starter motor |
| 25 | F8-09000401W | Start stator bracket |
| 26 | GB/T70.1-M8x20 | Hexagon socket head cap screw M8x20 |
Klicka på delen ovanför mer information och beställning
Parsun reservdel
StängF15-07060001
Kompatibel med Yamaha 6J8-81960-00
Finns i lager
OBS, endast ett fåtal i lager
